Error propagation - Cpx-Liquid.

You need to install Thermobar once on your machine, if you haven’t done this yet, uncomment the line below (remove the #)

[1]:

#!pip install Thermobar

[2]:

# Import other python stuff
import numpy as np
import pandas as pd
import matplotlib.pyplot as plt
import Thermobar as pt
pd.options.display.max_columns = None
pt.__version__

[2]:

'1.0.36'

Importing data

[3]:

out=pt.import_excel('Cpx_Liq_Error_prop_Feig2010_example.xlsx', sheet_name="Sheet1")
my_input=out['my_input']
myCpxs1=out['Cpxs']
myLiquids1=out['Liqs']

[4]:

## Check input looks reasonable
display(myCpxs1.head())
display(myLiquids1.head())
SiO2_Cpx TiO2_Cpx Al2O3_Cpx FeOt_Cpx MnO_Cpx MgO_Cpx CaO_Cpx Na2O_Cpx K2O_Cpx Cr2O3_Cpx Sample_ID_Cpx
0 51.075956 0.325086 4.892502 5.714957 0.165700 16.897042 20.466034 0.319704 0 0.252186 Feig2010_1
1 51.578350 0.356860 3.600200 6.390180 0.171190 16.402000 20.388060 0.332720 0 0.186270 Feig2010_2
2 51.567875 0.256271 4.763807 4.229021 0.000000 16.969344 21.061352 0.316506 0 0.528929 Feig2010_3
3 52.083950 0.325983 3.919567 5.285317 0.168583 16.604683 20.364050 0.318067 0 0.377937 Feig2010_4
4 52.331846 0.406175 3.974610 6.039907 0.173175 16.297102 19.784783 0.388863 0 0.285975 Feig2010_5
SiO2_Liq TiO2_Liq Al2O3_Liq FeOt_Liq MnO_Liq MgO_Liq CaO_Liq Na2O_Liq K2O_Liq Cr2O3_Liq P2O5_Liq H2O_Liq Fe3Fet_Liq NiO_Liq CoO_Liq CO2_Liq Sample_ID_Liq
0 50.973845 0.489282 19.349173 5.327336 0 4.511373 9.161873 4.205536 0 0 0 5.12 0 0 0 0 Feig2010_1
1 53.642629 0.617371 19.320971 4.884986 0 3.257343 6.824314 5.057043 0 0 0 5.18 0 0 0 0 Feig2010_2
2 49.629083 0.365787 19.103075 5.302860 0 6.403377 11.615943 3.275783 0 0 0 5.05 0 0 0 0 Feig2010_3
3 51.624314 0.443871 18.451100 6.303071 0 6.132229 10.365057 3.685714 0 0 0 2.67 0 0 0 0 Feig2010_4
4 53.980586 0.817471 17.454986 6.744429 0 5.149100 9.030871 4.179543 0 0 0 2.25 0 0 0 0 Feig2010_5

Example 1: Uncertainty in a single input parameter for Cpx-only and Cpx-Liq barometry

  • Here, we consider the effect of adding just 5% noise to measured Na2O contents of Cpx (a fairly typical uncertainty resulting from EPMA analyses)

  • Because our liquids and cpx dataframes need to be the same size to feed into the calculate_Cpx_Liq functions, we also use the add_noise_sample_1phase to generate a dataframe of Liq compositions, however, we simply state noise_percent=0 so all the rows for each liquid are identical

[5]:

# Make liquid dataframe of the right size, no noise added
Liquids_only_noNoise=pt.add_noise_sample_1phase(phase_comp=myLiquids1,
                        noise_percent=0, duplicates=1000, err_dist="normal")

All negative numbers replaced with zeros. If you wish to keep these, set positive=False

[6]:

# Make Cpx dataframe, with 5% random noise added to Na2O
Cpx_5Na2O=pt.add_noise_sample_1phase(phase_comp=myCpxs1, variable="Na2O",
variable_err=5, variable_err_type="Perc", duplicates=1000, err_dist="normal")

Cpx_5Na2O.head()

All negative numbers replaced with zeros. If you wish to keep these, set positive=False

[6]:
SiO2_Cpx TiO2_Cpx Al2O3_Cpx FeOt_Cpx MnO_Cpx MgO_Cpx CaO_Cpx Na2O_Cpx K2O_Cpx Cr2O3_Cpx Sample_ID_Cpx_Num Sample_ID_Cpx
0 51.075956 0.325086 4.892502 5.714957 0.1657 16.897042 20.466034 0.303531 0 0.252186 0 Feig2010_1
1 51.075956 0.325086 4.892502 5.714957 0.1657 16.897042 20.466034 0.325616 0 0.252186 0 Feig2010_1
2 51.075956 0.325086 4.892502 5.714957 0.1657 16.897042 20.466034 0.307201 0 0.252186 0 Feig2010_1
3 51.075956 0.325086 4.892502 5.714957 0.1657 16.897042 20.466034 0.303318 0 0.252186 0 Feig2010_1
4 51.075956 0.325086 4.892502 5.714957 0.1657 16.897042 20.466034 0.347571 0 0.252186 0 Feig2010_1
[7]:

# Plot what the Na content looks like
plt.hist(Cpx_5Na2O['Na2O_Cpx'].loc[Cpx_5Na2O['Sample_ID_Cpx_Num']==0], ec='k')
plt.xlabel('Na2O Cpx #0')

[7]:

Text(0.5, 0, 'Na2O Cpx #0')
../../_images/Examples_Error_propagation_Cpx_Liq_Thermobarometry_Error_prop_10_1.png

Lets first calculate Cpx-only pressures for these synthetic noisy Cpxs

[9]:

Out_5_noise_cpx_only=pt.calculate_cpx_only_press_temp(cpx_comps=Cpx_5Na2O,
                                    equationP="P_Put2008_eq32a",
                                        equationT="T_Put2008_eq32d", eq_tests=True)
Out_5_noise_cpx_only

[9]:
P_kbar_calc T_K_calc Delta_P_kbar_Iter Delta_T_K_Iter SiO2_Cpx TiO2_Cpx Al2O3_Cpx FeOt_Cpx MnO_Cpx MgO_Cpx CaO_Cpx Na2O_Cpx K2O_Cpx Cr2O3_Cpx Sample_ID_Cpx_Num Sample_ID_Cpx
0 7.176726 1503.404962 4.547474e-13 3.865352e-12 51.075956 0.325086 4.892502 5.714957 0.165700 16.897042 20.466034 0.303531 0 0.252186 0 Feig2010_1
1 7.327227 1504.328063 0.000000e+00 0.000000e+00 51.075956 0.325086 4.892502 5.714957 0.165700 16.897042 20.466034 0.325616 0 0.252186 0 Feig2010_1
2 7.201743 1503.558719 0.000000e+00 0.000000e+00 51.075956 0.325086 4.892502 5.714957 0.165700 16.897042 20.466034 0.307201 0 0.252186 0 Feig2010_1
3 7.175275 1503.396041 0.000000e+00 0.000000e+00 51.075956 0.325086 4.892502 5.714957 0.165700 16.897042 20.466034 0.303318 0 0.252186 0 Feig2010_1
4 7.476723 1505.240437 0.000000e+00 0.000000e+00 51.075956 0.325086 4.892502 5.714957 0.165700 16.897042 20.466034 0.347571 0 0.252186 0 Feig2010_1
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ...
6995 7.209419 1510.410826 0.000000e+00 0.000000e+00 52.498000 0.299767 3.517867 5.903067 0.178867 17.869733 19.342233 0.325852 0 0.377700 6 Feig2010_7
6996 7.246834 1510.667747 0.000000e+00 0.000000e+00 52.498000 0.299767 3.517867 5.903067 0.178867 17.869733 19.342233 0.331194 0 0.377700 6 Feig2010_7
6997 7.206544 1510.391084 0.000000e+00 0.000000e+00 52.498000 0.299767 3.517867 5.903067 0.178867 17.869733 19.342233 0.325442 0 0.377700 6 Feig2010_7
6998 7.200954 1510.352680 4.547474e-13 3.865352e-12 52.498000 0.299767 3.517867 5.903067 0.178867 17.869733 19.342233 0.324644 0 0.377700 6 Feig2010_7
6999 7.265069 1510.792914 0.000000e+00 0.000000e+00 52.498000 0.299767 3.517867 5.903067 0.178867 17.869733 19.342233 0.333797 0 0.377700 6 Feig2010_7

7000 rows × 16 columns

Lets plot the distribution of pressures for each Cpx

[10]:

fig, ((ax1, ax2), (ax3, ax4), (ax5, ax6)) = plt.subplots(3, 2, figsize=(10, 10))

ax1.hist(Out_5_noise_cpx_only.loc[Out_5_noise_cpx_only['Sample_ID_Cpx_Num']==0, "P_kbar_calc"], bins=50, ec='k', density = True)
ax1.annotate("Cpx 1", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)
ax2.hist(Out_5_noise_cpx_only.loc[Out_5_noise_cpx_only['Sample_ID_Cpx_Num']==1, "P_kbar_calc"], bins=50, ec='k', density = True)
ax2.annotate("Cpx 2", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)
ax3.hist(Out_5_noise_cpx_only.loc[Out_5_noise_cpx_only['Sample_ID_Cpx_Num']==2, "P_kbar_calc"], bins=50, ec='k', density = True)
ax3.annotate("Cpx 3", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)
ax4.hist(Out_5_noise_cpx_only.loc[Out_5_noise_cpx_only['Sample_ID_Cpx_Num']==3, "P_kbar_calc"], bins=50, ec='k', density = True)
ax4.annotate("Cpx 4", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)
ax5.hist(Out_5_noise_cpx_only.loc[Out_5_noise_cpx_only['Sample_ID_Cpx_Num']==4, "P_kbar_calc"], bins=50, ec='k', density = True)
ax5.annotate("Cpx 5", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)
ax6.hist(Out_5_noise_cpx_only.loc[Out_5_noise_cpx_only['Sample_ID_Cpx_Num']==5, "P_kbar_calc"], bins=50, ec='k', density = True)
ax6.annotate("Cpx 6", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)

ax1.set_xlabel('Pressure (kbar)')
ax2.set_xlabel('Pressure (kbar)')
ax4.set_xlabel('Pressure (kbar)')
ax3.set_xlabel('Pressure (kbar)')
ax6.set_xlabel('Pressure (kbar)')
ax5.set_xlabel('Pressure (kbar)')
ax1.set_ylabel('Probability Density')
ax3.set_ylabel('Probability Density')
ax5.set_ylabel('Probability Density')
plt.rcParams['figure.dpi']= 300
../../_images/Examples_Error_propagation_Cpx_Liq_Thermobarometry_Error_prop_14_0.png

We can also calculate statistics…

  • The first input is the thing you want to average (e.g. the calculated temperature in this instance), the second input is the thing you want to do the averaging based on (e.g. here average all rows with the same value of “Sample_ID_Liq_Num”

[11]:

Stats_T_K_cpx_only_5=pt.av_noise_samples_series(calc=Out_5_noise_cpx_only['T_K_calc'],
                                     sampleID=Out_5_noise_cpx_only['Sample_ID_Cpx_Num'])
Stats_T_K_cpx_only_5

[11]:
Sample # averaged Mean_calc Median_calc St_dev_calc St_dev_calc_from_percentiles Max_calc Min_calc
0 0 1000 1504.093704 1504.073654 0.648176 0.650417 1506.211484 1501.987065
1 1 1000 1482.816405 1482.801972 0.595222 0.600649 1484.691218 1480.953340
2 2 1000 1513.505202 1513.523069 0.602874 0.591517 1516.268401 1511.471754
3 3 1000 1505.911662 1505.918238 0.646588 0.649105 1508.216718 1504.083090
4 4 1000 1512.124246 1512.155947 0.955719 0.949070 1514.891601 1509.283521
5 5 1000 1542.923627 1542.907009 1.218478 1.186279 1547.032719 1538.977276
6 6 1000 1510.294284 1510.280719 0.751531 0.745849 1513.131975 1507.904170
[12]:

Stats_P_kbar_cpx_only_5=pt.av_noise_samples_series(calc=Out_5_noise_cpx_only['P_kbar_calc'],
                                     sampleID=Out_5_noise_cpx_only['Sample_ID_Cpx_Num'])
Stats_P_kbar_cpx_only_5

[12]:
Sample # averaged Mean_calc Median_calc St_dev_calc St_dev_calc_from_percentiles Max_calc Min_calc
0 0 1000 7.289132 7.285674 0.105820 0.106164 7.636680 6.946966
1 1 1000 5.689267 5.686578 0.101599 0.102537 6.011380 5.373169
2 2 1000 7.377341 7.380197 0.105958 0.103965 7.869050 7.022777
3 3 1000 7.098185 7.099074 0.104300 0.104689 7.472012 6.804438
4 4 1000 8.374216 8.378836 0.145922 0.144928 8.798488 7.942115
5 5 1000 10.869906 10.867006 0.186282 0.181347 11.501994 10.269874
6 6 1000 7.192545 7.190479 0.109396 0.108558 7.606801 6.845474

Lets do the same but for Cpx-Liq now. Remember, only Cpx has noise added

  • here, T=equation 33 from Putirka 2008, P=Equation 31 from Putirka 2008

[13]:

Out_5_noise_cpx_liq=pt.calculate_cpx_liq_press_temp(liq_comps=Liquids_only_noNoise, cpx_comps=Cpx_5Na2O,
                                    equationP="P_Put2008_eq31", equationT="T_Put2008_eq33", eq_tests=True)

Using Fe3FeT from input file to calculate Kd Fe-Mg

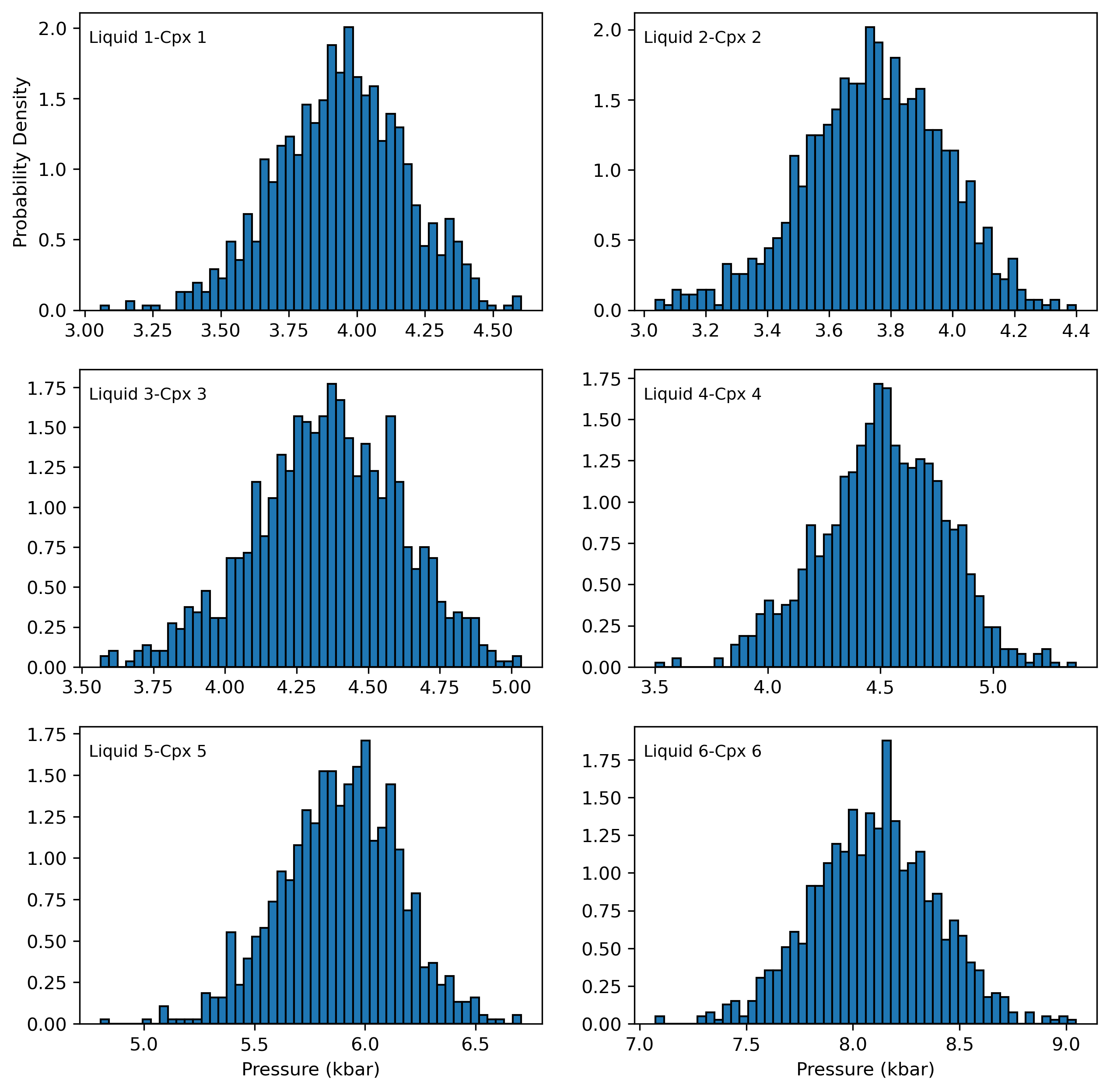

Each histogram shows the pressure distribution from a single Cpx-Liquid pair resulting from adding 5% error to just Na in Cpx.

  • Here we use the loc function to find all the rows where Cpx_Num==0, e.g. this is the first liquid in your excel spreadsheet.

  • If you wanted the 6th liquid instead, change ==0 to ==5 (as python starts its numbering from 0)

[14]:

fig, ((ax1, ax2), (ax3, ax4), (ax5, ax6)) = plt.subplots(3, 2, figsize=(10, 10))

ax1.hist(Out_5_noise_cpx_liq.loc[Out_5_noise_cpx_liq['Sample_ID_Cpx_Num']==0, "P_kbar_calc"], bins=50, ec='k', density = True)
ax1.annotate("Liquid 1-Cpx 1", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)
ax2.hist(Out_5_noise_cpx_liq.loc[Out_5_noise_cpx_liq['Sample_ID_Cpx_Num']==1, "P_kbar_calc"], bins=50, ec='k', density = True)
ax2.annotate("Liquid 2-Cpx 2", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)
ax3.hist(Out_5_noise_cpx_liq.loc[Out_5_noise_cpx_liq['Sample_ID_Cpx_Num']==2, "P_kbar_calc"], bins=50, ec='k', density = True)
ax3.annotate("Liquid 3-Cpx 3", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)
ax4.hist(Out_5_noise_cpx_liq.loc[Out_5_noise_cpx_liq['Sample_ID_Cpx_Num']==3, "P_kbar_calc"], bins=50, ec='k', density = True)
ax4.annotate("Liquid 4-Cpx 4", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)
ax5.hist(Out_5_noise_cpx_liq.loc[Out_5_noise_cpx_liq['Sample_ID_Cpx_Num']==4, "P_kbar_calc"], bins=50, ec='k', density = True)
ax5.annotate("Liquid 5-Cpx 5", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)
ax6.hist(Out_5_noise_cpx_liq.loc[Out_5_noise_cpx_liq['Sample_ID_Cpx_Num']==5, "P_kbar_calc"], bins=50, ec='k', density = True)
ax6.annotate("Liquid 6-Cpx 6", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)

ax6.set_xlabel('Pressure (kbar)')
ax5.set_xlabel('Pressure (kbar)')
ax1.set_ylabel('Probability Density')
plt.rcParams['figure.dpi']= 300
../../_images/Examples_Error_propagation_Cpx_Liq_Thermobarometry_Error_prop_21_0.png

Calculate Statistics

[15]:

Stats_T_K_Cpx_Liq_5Na=pt.av_noise_samples_series(calc=Out_5_noise_cpx_liq['T_K_calc'],
                                     sampleID=Out_5_noise_cpx_liq['Sample_ID_Liq_Num'])
Stats_T_K_Cpx_Liq_5Na

[15]:
Sample # averaged Mean_calc Median_calc St_dev_calc St_dev_calc_from_percentiles Max_calc Min_calc
0 0 1000 1344.982511 1344.958241 2.301838 2.310553 1352.085607 1337.008279
1 1 1000 1300.471799 1300.463114 2.083761 2.096915 1306.682126 1293.558853
2 2 1000 1384.044844 1384.169824 2.557811 2.502963 1394.872090 1374.869885
3 3 1000 1397.655967 1397.732071 2.532384 2.542268 1406.150489 1390.108260
4 4 1000 1402.163076 1402.318650 2.799021 2.767411 1409.808446 1393.333109
5 5 1000 1472.955481 1472.976203 3.010838 2.925995 1482.505951 1462.579731
6 6 1000 1481.018692 1481.026769 3.055057 3.033336 1491.803278 1470.660817
[16]:

Stats_P_kbar_Cpx_Liq_5Na=pt.av_noise_samples_series(calc=Out_5_noise_cpx_liq['P_kbar_calc'],
                                     sampleID=Out_5_noise_cpx_liq['Sample_ID_Liq_Num'])
Stats_P_kbar_Cpx_Liq_5Na

[16]:
Sample # averaged Mean_calc Median_calc St_dev_calc St_dev_calc_from_percentiles Max_calc Min_calc
0 0 1000 3.938405 3.935952 0.233353 0.234232 4.658471 3.129855
1 1 1000 3.748771 3.747827 0.219479 0.220866 4.403187 3.020858
2 2 1000 4.353823 4.366204 0.253318 0.247879 5.426241 3.445041
3 3 1000 4.518883 4.526332 0.247352 0.248313 5.348489 3.781491
4 4 1000 5.883760 5.898955 0.273494 0.270400 6.630888 5.020960
5 5 1000 8.099023 8.100936 0.282918 0.274941 8.996880 7.124293
6 6 1000 6.239598 6.240434 0.278082 0.276099 7.220138 5.295689

Example 2 - published absolute 1 sigma values for all oxides

  • Here, we use the published 1 sigma values for each oxide in both the glass and cpx reported by Feig et al. 2010

  • We make a noisy dataframe of the same length for liquids and cpxs, then combine them into the function for iterating P and T

First, load in the published 1 sigma values

[17]:

out_err=pt.import_excel_errors('Cpx_Liq_Error_prop_Feig2010_example.xlsx', sheet_name="Sheet1")
myLiquids1_err=out_err['Liqs_Err']
myCpxs1_err=out_err['Cpxs_Err']
myinput_Out=out_err['my_input_Err']

## Check input looks reasonable
display(myCpxs1_err.head())
display(myLiquids1_err.head())
SiO2_Cpx_Err TiO2_Cpx_Err Al2O3_Cpx_Err FeOt_Cpx_Err MnO_Cpx_Err MgO_Cpx_Err CaO_Cpx_Err Na2O_Cpx_Err K2O_Cpx_Err Cr2O3_Cpx_Err P_kbar_Err T_K_Err Sample_ID_Cpx_Err
0 0.400044 0.032172 0.510460 0.357680 0.023249 0.538039 0.645164 0.049138 0 0.034646 0 0 0
1 0.628064 0.067227 0.622601 0.657476 0.050037 0.732816 1.050758 0.060948 0 0.062095 0 0 1
2 0.585596 0.032846 0.918768 0.506392 0.000000 0.562266 0.794310 0.107095 0 0.210114 0 0 2
3 0.165277 0.032709 0.240924 0.207266 0.051434 0.182666 0.355487 0.048979 0 0.058814 0 0 3
4 0.106509 0.040535 0.479962 0.428886 0.026673 0.431550 0.486264 0.056668 0 0.051372 0 0 4
SiO2_Liq_Err TiO2_Liq_Err Al2O3_Liq_Err FeOt_Liq_Err MnO_Liq_Err MgO_Liq_Err CaO_Liq_Err Na2O_Liq_Err K2O_Liq_Err Cr2O3_Liq_Err P2O5_Liq_Err H2O_Liq_Err Fe3Fet_Liq_Err NiO_Liq_Err CoO_Liq_Err CO2_Liq_Err Sample_ID_Liq_Err P_kbar_Err T_K_Err
0 0.326030 0.042448 0.221884 0.432684 0 0.207011 0.268045 0.213647 0 0 0 0.2560 0 0 0 0 0 0 0
1 0.328698 0.025182 0.242675 0.214755 0 0.163292 0.171717 0.085388 0 0 0 0.2590 0 0 0 0 1 0 0
2 0.476011 0.027083 0.235814 0.301696 0 0.174436 0.206030 0.229583 0 0 0 0.2525 0 0 0 0 2 0 0
3 0.442894 0.047517 0.234808 0.219780 0 0.171799 0.274484 0.259757 0 0 0 0.1335 0 0 0 0 3 0 0
4 0.445356 0.043963 0.316155 0.389311 0 0.134659 0.209045 0.453723 0 0 0 0.1125 0 0 0 0 4 0 0
[18]:

# Make noise based on reported absolute 1 sigma errors from Feig et al (2010) for liquids
Liquids_st_noise=pt.add_noise_sample_1phase(phase_comp=myLiquids1, phase_err=myLiquids1_err,
                                             phase_err_type="Abs", duplicates=1000, err_dist="normal")

# Make noise based on reported absolute 1 sigma errors from Feig et al (2010) for Cpx
Cpxs_st_noise=pt.add_noise_sample_1phase(phase_comp=myCpxs1, phase_err=myCpxs1_err,
                                             phase_err_type="Abs", duplicates=1000, err_dist="normal")

All negative numbers replaced with zeros. If you wish to keep these, set positive=False
All negative numbers replaced with zeros. If you wish to keep these, set positive=False

[19]:

Out_st_noise=pt.calculate_cpx_liq_press_temp(liq_comps=Liquids_st_noise, cpx_comps=Cpxs_st_noise,
                                    equationP="P_Put2008_eq31",
                                    equationT="T_Put2008_eq33", eq_tests=True)
Out_st_noise['Sample_ID_Liq']=Liquids_st_noise['Sample_ID_Liq']

Using Fe3FeT from input file to calculate Kd Fe-Mg

[20]:

Stats_T_K_CpxLiqPubErr=pt.av_noise_samples_series(Out_st_noise['T_K_calc'], Liquids_st_noise['Sample_ID_Liq_Num'])
Stats_T_K_CpxLiqPubErr

[20]:
Sample # averaged Mean_calc Median_calc St_dev_calc St_dev_calc_from_percentiles Max_calc Min_calc
0 0.0 1000 1344.778009 1344.735392 11.156826 10.840918 1375.682470 1302.872509
1 1.0 1000 1298.258746 1299.281954 14.254824 NaN 1330.315266 1175.080944
2 2.0 1000 1381.502327 1383.813019 22.308766 19.837978 1435.279079 1264.203025
3 3.0 1000 1397.162764 1397.509669 10.235910 10.054889 1426.196935 1355.266807
4 4.0 1000 1402.318585 1402.558428 11.082536 10.794108 1437.824694 1360.557106
5 5.0 1000 1472.681192 1472.671170 6.863751 6.509604 1493.673102 1452.546075
6 6.0 1000 1480.309567 1480.395505 9.144380 8.975709 1516.852760 1452.699821
[21]:

Stats_P_kbar_CpxLiqPubErr=pt.av_noise_samples_series(Out_st_noise['P_kbar_calc'], Liquids_st_noise['Sample_ID_Liq_Num'])
Stats_P_kbar_CpxLiqPubErr

[21]:
Sample # averaged Mean_calc Median_calc St_dev_calc St_dev_calc_from_percentiles Max_calc Min_calc
0 0.0 1000 3.905501 3.934258 0.803513 0.784033 6.176492 1.083341
1 1.0 1000 3.604391 3.759577 1.267754 NaN 5.990290 -10.913168
2 2.0 1000 4.130971 4.401500 2.075102 1.791349 8.134930 -7.126329
3 3.0 1000 4.471886 4.488412 0.856214 0.816977 6.709085 0.742520
4 4.0 1000 5.882646 5.916289 0.914733 0.852087 8.154560 2.183166
5 5.0 1000 8.087495 8.087377 0.492009 0.474018 9.712500 6.424784
6 6.0 1000 6.193959 6.206869 0.486849 0.456279 7.561456 4.587588

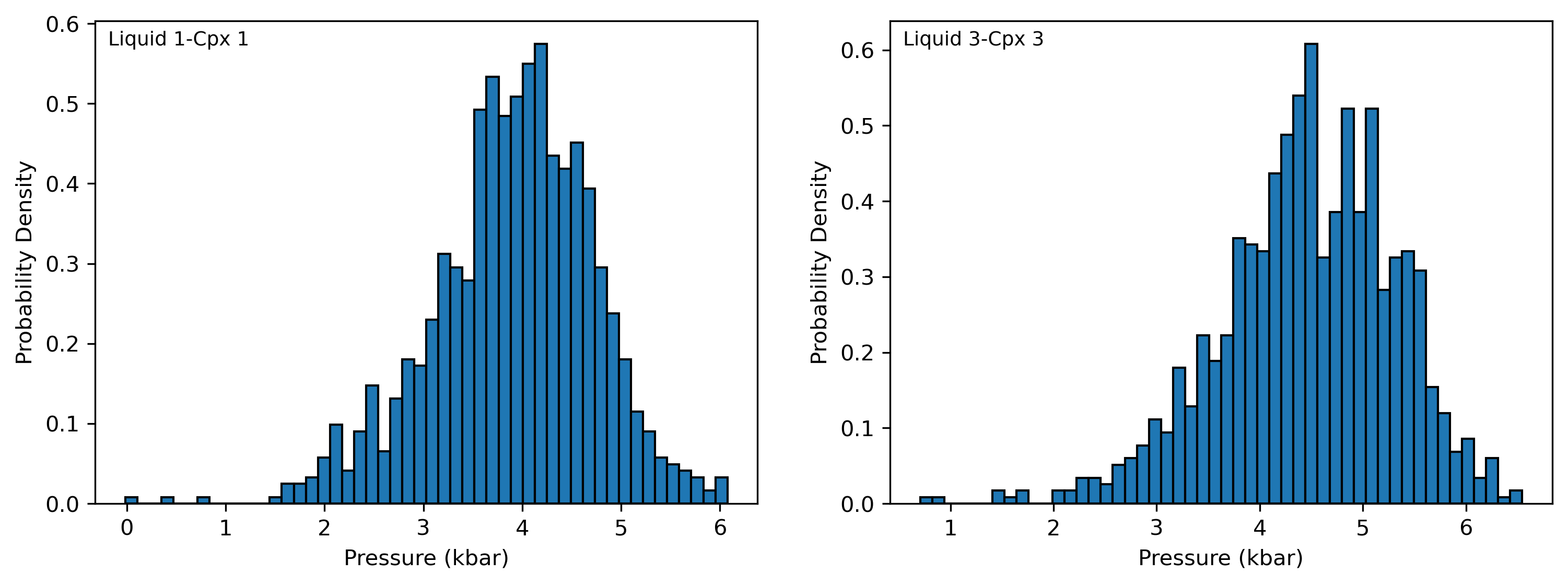

Recreate plot shown in manuscript for just 2 cpx-liq pairs from experiments

  • Here, on the LHS we plot cpx-liq pairs from the first row of the spreadsheet (ID=0)

  • On the RHS, we plot the pairs from row 4 (ID=3)

[22]:

fig, ((ax1, ax2)) = plt.subplots(1, 2, figsize=(12, 4))

ax1.hist(Out_st_noise.loc[Out_st_noise['Sample_ID_Liq_Num']==0, "P_kbar_calc"], bins=50, ec='k', density = True)
ax1.annotate("Liquid 1-Cpx 1", xy=(0.02, 0.95), xycoords="axes fraction", fontsize=9)
ax2.hist(Out_st_noise.loc[Out_st_noise['Sample_ID_Liq_Num']==3, "P_kbar_calc"], bins=50, ec='k', density = True)
ax2.annotate("Liquid 3-Cpx 3", xy=(0.02, 0.95), xycoords="axes fraction", fontsize=9)

#ax2.set_xlim([0, 6])
ax1.set_xlabel('Pressure (kbar)')
ax2.set_xlabel('Pressure (kbar)')
ax1.set_ylabel('Probability Density')
ax2.set_ylabel('Probability Density')
fig.savefig('Manuscript_2CpxNoises.png', dpi=300, transparent=True)
../../_images/Examples_Error_propagation_Cpx_Liq_Thermobarometry_Error_prop_33_0.png

Plot for 6 separate cpx-liq pairs

  • can average by _Cpx or _Liq, doesnt matter, as will match

[23]:

fig, ((ax1, ax2), (ax3, ax4), (ax5, ax6)) = plt.subplots(3, 2, figsize=(10, 10))

ax1.hist(Out_st_noise.loc[Out_st_noise['Sample_ID_Cpx_Num']==0, "P_kbar_calc"], bins=50, ec='k', density = True)
ax1.annotate("Liquid 1-Cpx 1", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)


ax2.hist(Out_st_noise.loc[Out_st_noise['Sample_ID_Cpx_Num']==1, "P_kbar_calc"], bins=50, ec='k', density = True)
ax2.annotate("Liquid 2-Cpx 2", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)

ax3.hist(Out_st_noise.loc[Out_st_noise['Sample_ID_Cpx_Num']==2, "P_kbar_calc"], bins=50, ec='k', density = True)
ax3.annotate("Liquid 3-Cpx 3", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)

ax4.hist(Out_st_noise.loc[Out_st_noise['Sample_ID_Cpx_Num']==3, "P_kbar_calc"], bins=50, ec='k', density = True)
ax4.annotate("Liquid 4-Cpx 4", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)

ax5.hist(Out_st_noise.loc[Out_st_noise['Sample_ID_Cpx_Num']==4, "P_kbar_calc"], bins=50, ec='k', density = True)
ax5.annotate("Liquid 5-Cpx 5", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)

ax6.hist(Out_st_noise.loc[Out_st_noise['Sample_ID_Cpx_Num']==5, "P_kbar_calc"], bins=50, ec='k', density = True)
ax6.annotate("Liquid 6-Cpx 6", xy=(0.02, 0.9), xycoords="axes fraction", fontsize=9)

ax2.set_xlim([0, 6])
ax6.set_xlabel('Pressure (kbar)')
ax5.set_xlabel('Pressure (kbar)')
ax1.set_ylabel('Probability Density')
ax3.set_ylabel('Probability Density')
ax5.set_ylabel('Probability Density')

[23]:

Text(0, 0.5, 'Probability Density')
../../_images/Examples_Error_propagation_Cpx_Liq_Thermobarometry_Error_prop_35_1.png

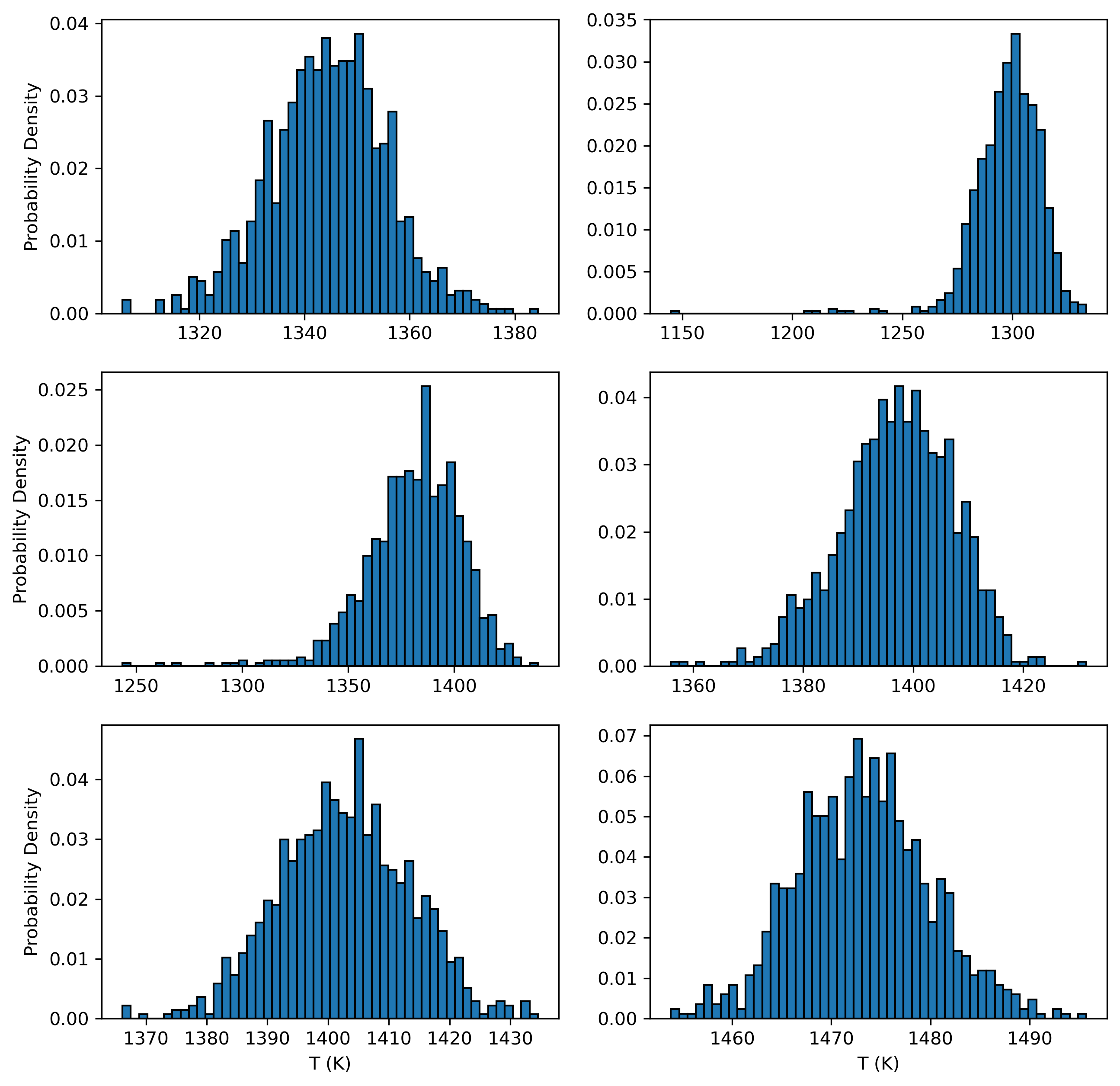

Temperature distributions for first 6 pairs

[24]:

fig, ((ax1, ax2), (ax3, ax4), (ax5, ax6)) = plt.subplots(3, 2, figsize=(10, 10))

ax1.hist(Out_st_noise.loc[Out_st_noise['Sample_ID_Cpx_Num']==0, "T_K_calc"], bins=50, ec='k', density = True)
ax2.hist(Out_st_noise.loc[Out_st_noise['Sample_ID_Cpx_Num']==1, "T_K_calc"], bins=50, ec='k', density = True)
ax3.hist(Out_st_noise.loc[Out_st_noise['Sample_ID_Cpx_Num']==2, "T_K_calc"], bins=50, ec='k', density = True)
ax4.hist(Out_st_noise.loc[Out_st_noise['Sample_ID_Cpx_Num']==3, "T_K_calc"], bins=50, ec='k', density = True)
ax5.hist(Out_st_noise.loc[Out_st_noise['Sample_ID_Cpx_Num']==4, "T_K_calc"], bins=50, ec='k', density = True)
ax6.hist(Out_st_noise.loc[Out_st_noise['Sample_ID_Cpx_Num']==5, "T_K_calc"], bins=50, ec='k', density = True)
ax6.set_xlabel('T (K)')
ax5.set_xlabel('T (K)')
ax1.set_ylabel('Probability Density')
ax3.set_ylabel('Probability Density')
ax5.set_ylabel('Probability Density')

[24]:

Text(0, 0.5, 'Probability Density')
../../_images/Examples_Error_propagation_Cpx_Liq_Thermobarometry_Error_prop_37_1.png

Plots with conventional errorbars for each Cpx-Liq pair

  • Note, although this is typically how thermobarometric data is displayed, it isnt very realistic, our error propagation shows that error ellipses would be better - see the example below

[25]:

fig, (ax1) = plt.subplots(1, 1, figsize=(3, 2.5))

ax1.errorbar(Stats_T_K_CpxLiqPubErr['Mean_calc'],
             Stats_P_kbar_CpxLiqPubErr['Mean_calc'],
             xerr=Stats_T_K_CpxLiqPubErr['St_dev_calc'],
             yerr=Stats_P_kbar_CpxLiqPubErr['St_dev_calc'],
             fmt='d', ecolor='k', elinewidth=0.8, mfc='cyan', ms=5, mec='k')
ax1.set_ylabel('Calculated P (kbar)')
ax1.set_xlabel('Calculated T (K)')


[25]:

Text(0.5, 0, 'Calculated T (K)')
../../_images/Examples_Error_propagation_Cpx_Liq_Thermobarometry_Error_prop_39_1.png

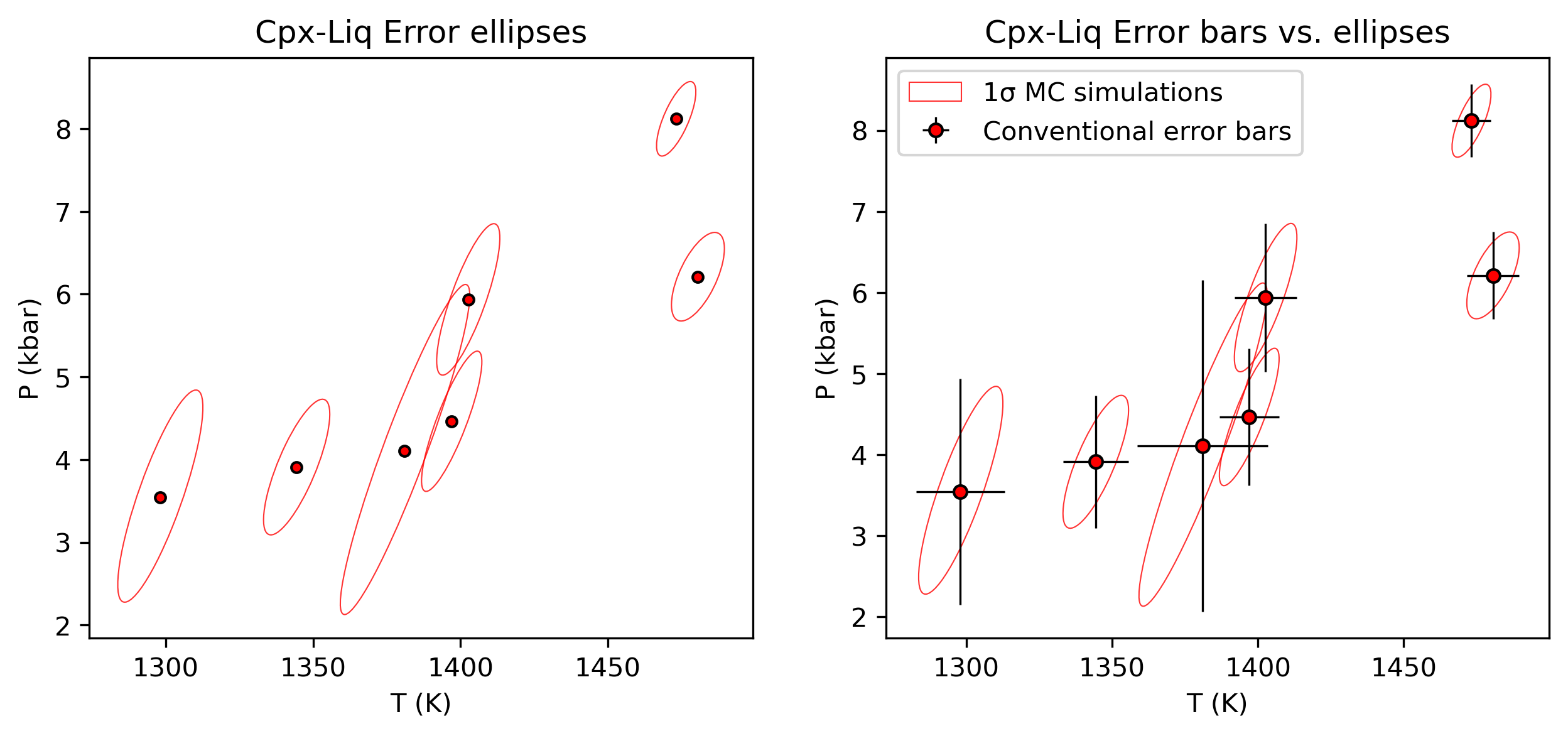

Error ellipses instead

[26]:

Out_st_noise.columns[0:100]

[26]:

Index(['P_kbar_calc', 'T_K_calc', 'Eq Tests Neave2017?', 'Delta_P_kbar_Iter',
       'Delta_T_K_Iter', 'Delta_Kd_Put2008', 'Delta_Kd_Mas2013',
       'Delta_EnFs_Mollo13', 'Delta_EnFs_Put1999', 'Delta_CaTs_Put1999',
       'Delta_DiHd_Mollo13', 'Delta_DiHd_Put1999', 'Delta_CrCaTs_Put1999',
       'Delta_CaTi_Put1999', 'SiO2_Liq', 'TiO2_Liq', 'Al2O3_Liq', 'FeOt_Liq',
       'MnO_Liq', 'MgO_Liq', 'CaO_Liq', 'Na2O_Liq', 'K2O_Liq', 'Cr2O3_Liq',
       'P2O5_Liq', 'H2O_Liq', 'Fe3Fet_Liq', 'NiO_Liq', 'CoO_Liq', 'CO2_Liq',
       'Sample_ID_Liq_Num', 'SiO2_Liq_mol_frac', 'MgO_Liq_mol_frac',
       'MnO_Liq_mol_frac', 'FeOt_Liq_mol_frac', 'CaO_Liq_mol_frac',
       'Al2O3_Liq_mol_frac', 'Na2O_Liq_mol_frac', 'K2O_Liq_mol_frac',
       'TiO2_Liq_mol_frac', 'P2O5_Liq_mol_frac', 'Cr2O3_Liq_mol_frac',
       'Si_Liq_cat_frac', 'Mg_Liq_cat_frac', 'Mn_Liq_cat_frac',
       'Fet_Liq_cat_frac', 'Ca_Liq_cat_frac', 'Al_Liq_cat_frac',
       'Na_Liq_cat_frac', 'K_Liq_cat_frac', 'Ti_Liq_cat_frac',
       'P_Liq_cat_frac', 'Cr_Liq_cat_frac', 'Mg_Number_Liq_NoFe3',
       'Mg_Number_Liq_Fe3', 'SiO2_Cpx', 'TiO2_Cpx', 'Al2O3_Cpx', 'FeOt_Cpx',
       'MnO_Cpx', 'MgO_Cpx', 'CaO_Cpx', 'Na2O_Cpx', 'K2O_Cpx', 'Cr2O3_Cpx',
       'Sample_ID_Cpx_Num', 'Si_Cpx_cat_6ox', 'Mg_Cpx_cat_6ox',
       'Fet_Cpx_cat_6ox', 'Ca_Cpx_cat_6ox', 'Al_Cpx_cat_6ox', 'Na_Cpx_cat_6ox',
       'K_Cpx_cat_6ox', 'Mn_Cpx_cat_6ox', 'Ti_Cpx_cat_6ox', 'Cr_Cpx_cat_6ox',
       'oxy_renorm_factor', 'Al_IV_cat_6ox', 'Al_VI_cat_6ox',
       'En_Simple_MgFeCa_Cpx', 'Fs_Simple_MgFeCa_Cpx', 'Wo_Simple_MgFeCa_Cpx',
       'Cation_Sum_Cpx', 'Ca_CaMgFe', 'Lindley_Fe3_Cpx', 'Lindley_Fe2_Cpx',
       'Lindley_Fe3_Cpx_prop', 'CrCaTs', 'a_cpx_En', 'Mgno_Cpx', 'Jd',
       'Jd_from 0=Na, 1=Al', 'CaTs', 'CaTi', 'DiHd_1996', 'EnFs', 'DiHd_2003',
       'Di_Cpx', 'FeIII_Wang21', 'FeII_Wang21'],
      dtype='object')

[27]:

Out_st_noise['Sample_ID_Liq'].unique()[0]

[27]:

'Feig2010_1'

[28]:

fig, (ax0, ax1) = plt.subplots(1, 2, figsize=(10, 4))

# you have to plot something on the axis before you try to add the confidence intervals

ax0.plot(Stats_T_K_CpxLiqPubErr['Mean_calc'],
             Stats_P_kbar_CpxLiqPubErr['Mean_calc'], 'ok', mfc='red', ms=4)


for sam in Out_st_noise['Sample_ID_Liq'].unique():
    Calc_PT_16=Out_st_noise.loc[Out_st_noise['Sample_ID_Liq']==sam].reset_index(drop=True)

    y=Calc_PT_16['P_kbar_calc'].loc[Calc_PT_16['P_kbar_calc']>-10].values
    x=Calc_PT_16['T_K_calc'].loc[Calc_PT_16['P_kbar_calc']>-10].values
    pt.matplotlib_confidence_ellipse(x, y, ax0, n_std=1,
                    edgecolor='r', lw=0.5, alpha=0.8)



ax0.set_xlabel('T (K)')
ax0.set_ylabel('P (kbar)')

ax1.plot(Stats_T_K_CpxLiqPubErr['Mean_calc'],
             Stats_P_kbar_CpxLiqPubErr['Mean_calc'], 'ok', mfc='red', ms=4)


for sam in Out_st_noise['Sample_ID_Liq'].unique():

    Calc_PT_16=Out_st_noise.loc[Out_st_noise['Sample_ID_Liq']==sam].reset_index(drop=True)

    y=Calc_PT_16['P_kbar_calc'].loc[Calc_PT_16['P_kbar_calc']>-10].values
    x=Calc_PT_16['T_K_calc'].loc[Calc_PT_16['P_kbar_calc']>-10].values
    if sam==Out_st_noise['Sample_ID_Liq'].unique()[0]:
        pt.matplotlib_confidence_ellipse(x, y, ax1, n_std=1,
                    edgecolor='red', lw=0.5, alpha=0.8, label='1σ MC simulations')
    else:
        pt.matplotlib_confidence_ellipse(x, y, ax1, n_std=1,
                    edgecolor='red', lw=0.5, alpha=0.8)






ax1.set_xlabel('T (K)')
ax1.set_ylabel('P (kbar)')
ax1.errorbar(Stats_T_K_CpxLiqPubErr['Mean_calc'],
             Stats_P_kbar_CpxLiqPubErr['Mean_calc'],
             xerr=Stats_T_K_CpxLiqPubErr['St_dev_calc'],
             yerr=Stats_P_kbar_CpxLiqPubErr['St_dev_calc'],
             fmt='o', ecolor='k', elinewidth=0.8, mfc='red', ms=5, mec='k', label='Conventional error bars')
ax1.legend()
ax0.set_title('Cpx-Liq Error ellipses')
ax1.set_title('Cpx-Liq Error bars vs. ellipses')

fig.savefig('confidence_intervals_vs_errorbars.png', dpi=200)
../../_images/Examples_Error_propagation_Cpx_Liq_Thermobarometry_Error_prop_43_0.png
[ ]:



[ ]:



[ ]:



[ ]:



[ ]:
